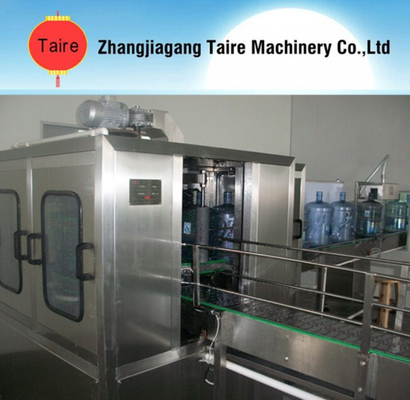

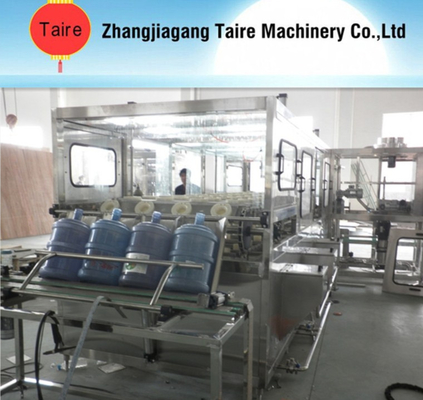

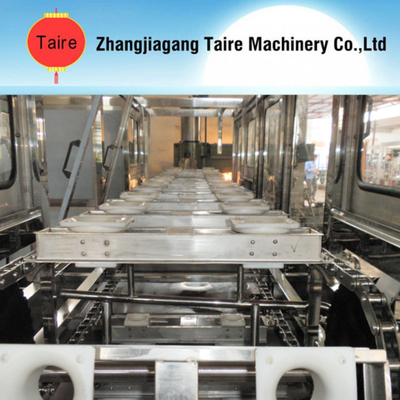

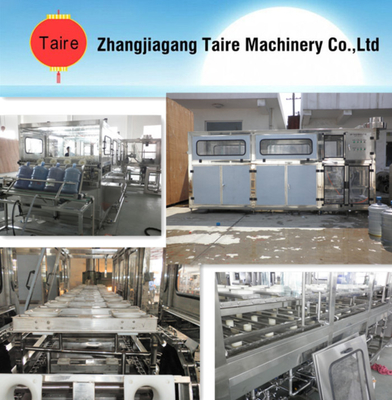

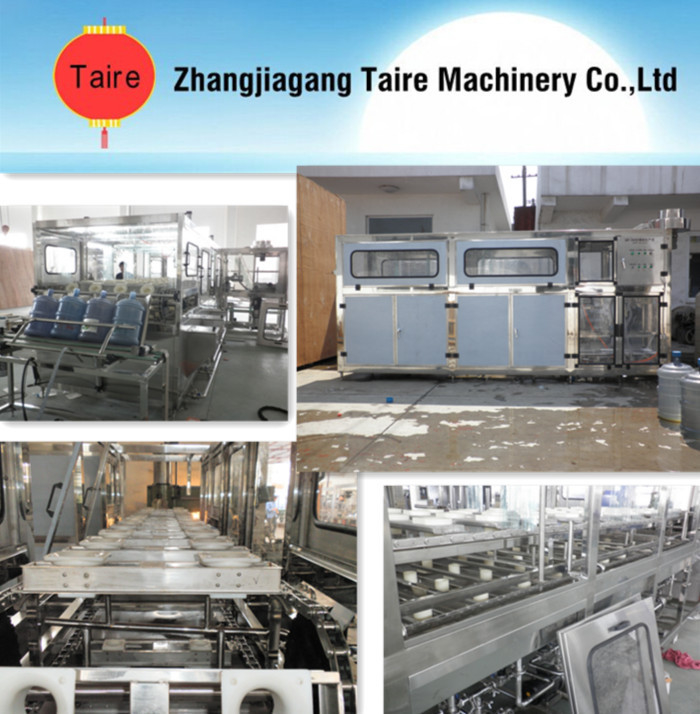

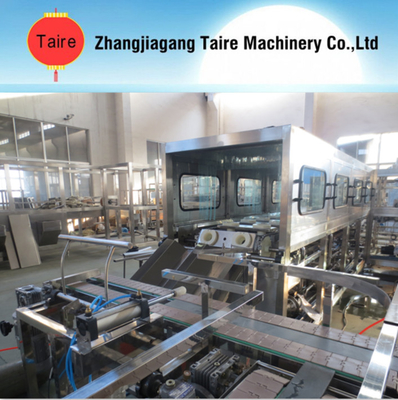

Machine advantage:
1. This filling line specially produces 3&5 gallons barreled drinking water.
2. This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
3. In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
4. This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
5. This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
6. It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.
Characteristic:
1.QGF type bottled production line specialize produce 3 gallons and 5 gallons bottled water.
2.The machine with all the function—washing , filling , screwing , it is an ideal equipment for producing mineral water , distilled water , pure water.
3.All the machine is made of stainless steel , anticorrosive , easy to clear. The main electrical elements use the SIEMENS,OMRON . Carrier gas system use the Air TAC .
4.The machine has small and exquisite structure , occupy a little space in the working room , high efficient working , stable and reliable, high automation .
5.All the operation just need 2 people.
Main technical parameters:
|
Model
|
Capacity production
|
power
|
Overall dimension
|
|
QGF-120
|
120b/h
|
2.8kw
|
2500*900*1445
|
|
QGF-200
|
200 b/h
|
3.3 kw
|
3000*1350*1560
|
|
QGF-300
|
300 b/h
|
4.5 kw
|
3500*1400*1560
|
|
QGF-600
|
600 b/h
|
5.7 kw
|
4500*3000*1560
|
|
QGF-900
|
900 b/h
|
6.5 kw
|
5100*3600*1560
|
|
QGF-1200
|
1200 b/h
|
8 kw
|
5100*1400*1560
|
