Specifications:

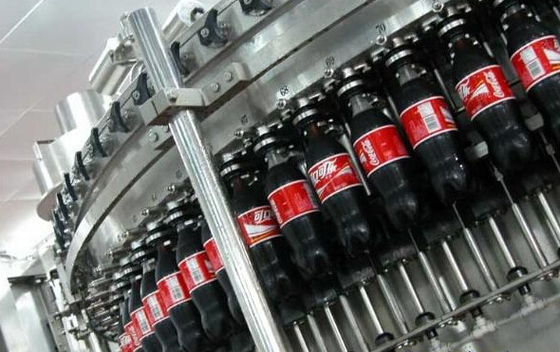

1, Suit for filling carbonated drink, as Cola
2,Capacity 1000-8000bph
3,Bottle type: PET, glass, pop top can
4,CE, ISO
Machine advantage:
1. smooth working
2. reliable and safe operation
3. convenient maintenance
4. high-efficiency production
Usage:

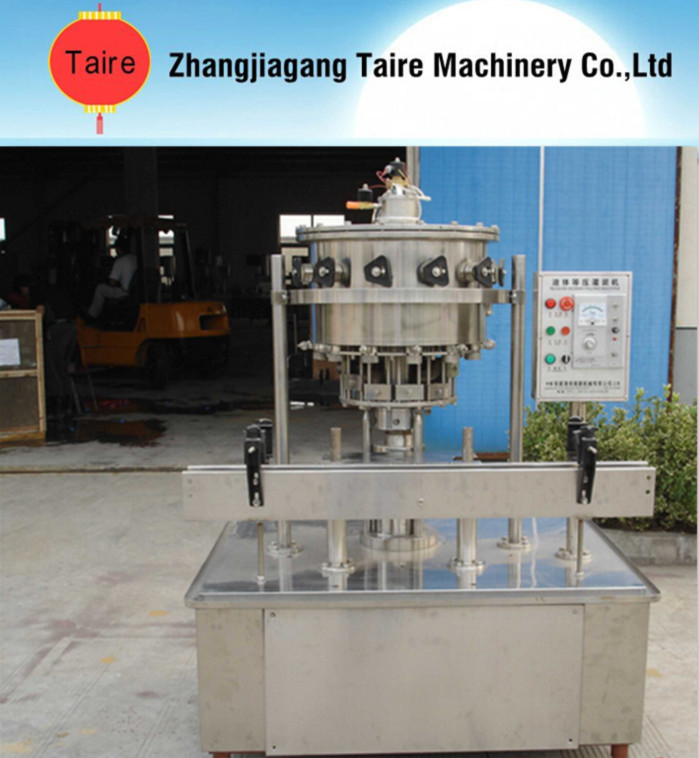

This DG-8 filling machine suit for small to middle beverage factory to produce Black tea, green tea etc.
Characteristic:

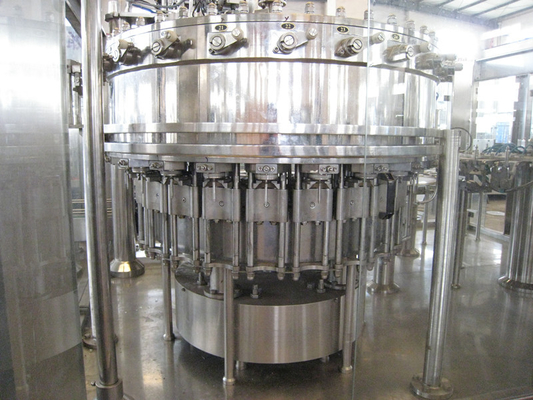

The machine is introduced, the basis of digesting and absorbing foreign advanced technology, innovative development and become a kind of advanced filling equipment, it is mainly used for soft drinks, cola, sparkling wine, fruit water device such as a beverage containing gas.It has the advanced structure, smooth working, safe operation, convenient maintenance, can be infinitely adjustable-speed, create higher efficiency.Is an ideal filling equipment of small and medium-sized beverage factory.----
Main technical parameters:
|
Model
|
DG-8
|
DG-12
|
DG-18
|
DG-24
|
DG-32
|
|
Production capacity
|
1000-2000H/B
|
1000-3000 H/B
|
2500-4600 H/B
|
2500-6000 H/B
|
3000-8000 H/B
|
|
Botlle/standard
|
Glass bottle /PVC bottle / pop-top can
|
|
Filling pressure
|
0.2-0.3Mpa
|
|
Filling temperature
|
2-6 c
|
|
power
|
0.75kw
|
1.1 kw
|
1.5 kw
|
1.5 kw
|
2.2 kw
|
|
Overall dimensions
|
1000x900x1800mm
|
1100x1050x1800 mm
|
1400x1300x1800 mm
|
1600x1540x1800 mm
|
1900x1500x2000 mm
|
|
weight
|
1000kg
|
1600 kg
|
2100 kg
|
2700 kg
|
3500 kg
|
