| Place of Origin: | China |
| Marca: | Taire |
| Certificação: | ISO/CE |
| Model Number: | blow moulding machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | wooden case packing wuit for long time transport |
| Delivery Time: | 30days |
| Payment Terms: | TT or negotiation |
| Supply Ability: | 1000 set/year |
| Voltage: | basis on customer requirement |
| Material: | SUS304 | Running: | semi-automatic |
|---|---|---|---|
| Warranty: | lifetime | Power(W): | 10kw |
| Dimension(L*W*H): | 210*73*190cm |
Brief introduction:

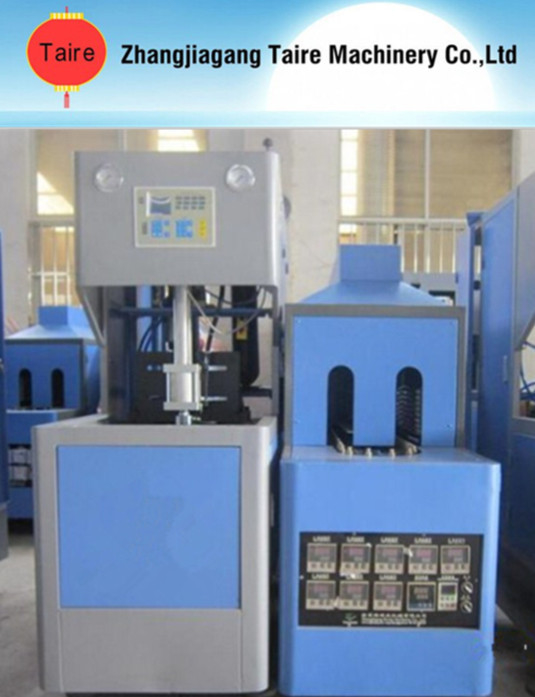

semi-automatic blow moulding machine, has been improved on the basis of its pre-model.It is designed according to CE standard, by adding safe door, the machine is safer and easier to operate, also the machine looks neat and nice.
The main technical parameters:
|
General information |
YD—5FOR 5GALLON |
|
Clamping force |
22T |
|
Clamping stroke |
450mm |
|
Max.stretching stroke |
660mm |
|
Number of cavities |
7-22l 1 cavity |
|
Theorectical output |
7-22l 1 cavity:90bph |
|
Max.mould thickness |
400mm |
|
Mould plate size |
600*640mm |
|
Voltage standard |
380v/3hp/50hz |
|
Total power |
10-25kw |
|
Min air compressor |
1.6m/min 3.0mpa |
|
Blow molding machine |
210*73*190cm |
|
Pre-heater |
262*66*160cm |
|
Net weight |
2.5t |
|
Container volume |
7-22l |
|
Neck diameter range |
50-330mm |
|
Container diamerer |
400mm |
|
Container height |
640mm |
