Specifications
1,semi-automatic wrapper
2,tunnel
3,Capacity:2-5pcs/minute
4,Film width:500mm
5. CE, ISO certification
About machine:

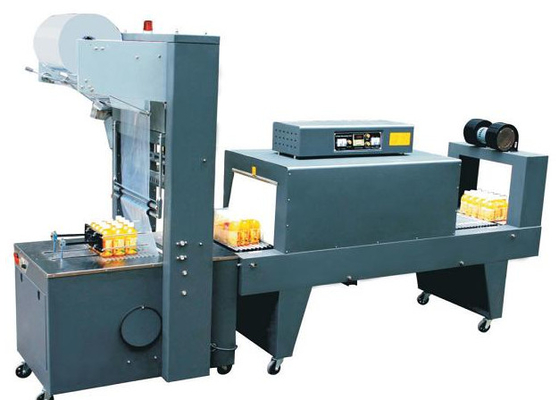

1.PE film heat shrink sleeving machine
2.Uninterrupted operation.
3.Stainless radiator
4.Advanced design
Usage:
The sleeve wrapper is suitable for wrapping of such products as pop-top, mineral water, bottles, beer, drinks etc without bottom-tray. working with PE shrink tunnel to pack the goods perfectly. The whole producing process adopts the Germany advanced technics. And the main parts are imported from Germany.
advantage:
1.Shrinking machine is suitable to collective packaging of drinks, beer and mineral water with or without paper support, also suitable to ingle or collective packaging, in the fields of electric apparatus, hardware accessories and flooring.
2.Upper and lower motor driven conveyor system to facilitate film convey.
3.The PE film shirnking machine adopts German advanced technology, elaborating according to European process.Imported converter to achieve to 0-10m/min. Adjustable speed range.
4.Ultra strong cooling system of PE fiml shrinking machine to ensure quick formation after heat-shrinking of products.
Main technical parameters:
|
Model
|
QSJ-5040A
|
BZJ5038B
|
|
Voltage
|
220V,50-60HZ
|
220V,50-60HZ
|
|
Power
|
3kw
|
1.8kw
|
|
Capacity
|
0-10pcs/minute
|
0-6pcs/minute
|
|
Sealing time
|
0.01-1.5s
|
0.5-1.5s
|
|
Shrink film
|
PE,POF,PVC,PP
|
PE,POF,PVC,PP
|
|
Width/thickness of the film
|
MAX.590mm/0.03-0.25mm
|
MAX.550mm/0.03-0.25mm
|
|
Max.packing dimension
|
500*300*400mm
|
450*270*350
|
|
Min.packing dimension
|
250*50*100mm
|
250*60*60mm
|
|
Machine size
|
1060*1600*1930mm
|
1020*830*1980mm
|
|
Machine weight
|
370kg
|
225kg
|
